Wellhead Adapters & Crossovers: Managing Pressure Transitions
In the lifecycle of a well, surface equipment often needs to bridge different pressure environments. Whether you are transitioning from a lower-pressure casing head to a high-pressure Christmas tree, or connecting legacy infrastructure to modern 10K systems, a wellhead adapter is the critical component that ensures safety and regulatory compliance.
At CRC Wellhead Supply, we leverage our 3,000 lb machining capacity to engineer heavy-duty crossovers and Spool Adaptors designed to handle the massive stress of mismatched pressure ratings.
️What is a Pressure Crossover?
A pressure crossover occurs when the “bottom” connection of a component has a different API 6A pressure rating than the “top” connection. For example, an operator may need to install a 10,000 PSI (10M) production tree onto a 5,000 PSI (5M) tubing head.
Why Transitions Matter:
-
Safety Isolation: The adapter must be rated for the highest potential pressure it will encounter, ensuring the lower-pressure side is never compromised.
-
Structural Integrity: Because high-pressure systems (10M+) use different bolting patterns and ring gaskets (like BX vs. R/RX), the adapter serves as the mechanical bridge between these two distinct engineering standards.
Engineering the “High-to-Low” Bridge
Machining an adapter for a 5,000 to 10,000 PSI transition requires a deep understanding of metallurgy and wall thickness. At our Edmonton facility, we ensure every transition meets rigorous standards:
1. Tapered Bore Design
To prevent fluid turbulence and internal erosion, CRC machines a tapered internal bore. This ensures a smooth transition for the flow as it moves between different diameters. Smooth internal surfaces are vital for maintaining the longevity of your Spool Adaptors and manifold blocks.
2. Flange Face Precision
A crossover often means switching gasket types. We precision-machine the API 6A ring grooves to ensure that a 5M R-type gasket on the bottom and a 10M BX-type gasket on the top both achieve a perfect metal-to-metal seal. These transitions are designed to mate seamlessly with our API-certified Companion Flanges.
Common Crossover Configurations

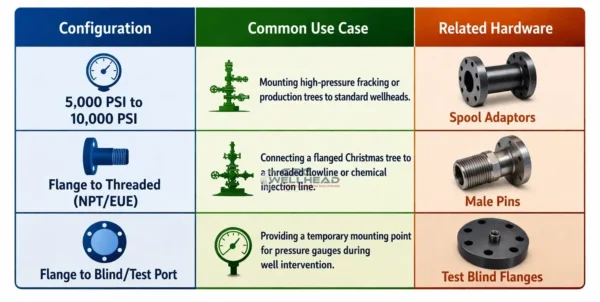

While we can machine custom solutions for any “Top-of-Stack” requirement, these are the most common configurations found on Canadian leases:
A wellhead adapter is a calculated engineering solution for pressure management. By using precision-machined crossovers and Spool Adaptors, operators can maintain the highest safety standards while optimizing their existing equipment stack.
Need a custom crossover for your next project? Contact CRC Wellhead Supply today for a quote on precision-machined components designed for Maximum Performance and total pressure containment.
