Milling the Un-Millable: Precision Engineering for Massive Blocks
In the demanding landscape of Western Canadian energy, “off-the-shelf” components often fail to meet the structural requirements of high-pressure environments. When your wellhead stack-up requires maximum strength with minimum footprint, the solution isn’t found in a catalog; it is engineered through specialized milling block processes.

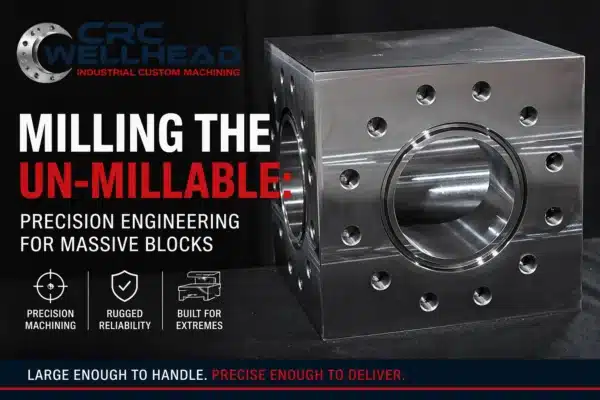

At CRC Wellhead Supply, we specialize in “Milling the Un-Millable.” Our Edmonton facility leverages a 3,000 lb machining capacity to transform raw, heavy forgings into the high-precision Studded Tees and Studded Crosses that define modern oilfield reliability.
The Anatomy of Solid Block Machining
Standard wellhead components are often flanged, but solid block machining offers a distinct advantage: structural density. By starting with a single, massive forging rather than welding parts together, we eliminate potential leak paths and structural weak points.
The process of turning a raw milling block into a complex junction involves several critical engineering stages:
1. Precision Heavy-Duty Lathe Work
Before the complex internal geometry is created, the raw forging must be trued. We utilize precision heavy-duty lathe work to square the block and prepare the faces. This stage is vital to ensure that every subsequent bore and tapped hole is perfectly aligned with the block’s center of gravity, maintaining balance in your Christmas tree assembly.
2. Deep-Bore Milling
To create a Studded Tee or Cross, our team performs high-tolerance internal boring. Unlike standard piping, these bores must be perfectly smooth to prevent fluid turbulence and erosion, especially in high-flow or high-pressure applications.
3. Tapping and Studding
The “Studded” design is what makes these blocks space-saving heroes. Instead of extended flange necks, we machine-tapped holes directly into the block body. This requires extreme precision; the threads must be cut to exact API 6A tolerances to ensure the studs can handle the tension of a 10,000 PSI seal.
Why Edmonton’s Industrial Fabrication Matters
Oilfield equipment in Canada faces some of the harshest conditions on Earth. Industrial fabrication in Edmonton requires more than just a shop; it requires an understanding of metallurgy and environmental stress.
-
Massive Scale: Our 3,000 lb capacity means we can handle the large-diameter blocks required for large-bore wells that smaller shops simply can’t accommodate.
-
Material Integrity: We work with high-grade forged steel and specialized alloys, ensuring our solid block machining meets the standards for sour service.
-
API 6A Compliance: Every milling block we process undergoes rigorous inspection to ensure ring grooves are cut to the thousandth of an inch for a perfect metal-to-metal seal.
Strategic Integration with Your Wellhead Stack
A custom-machined milling block is only one piece of the puzzle. To ensure a safe and efficient installation, these blocks are designed to integrate seamlessly with other critical hardware:
-
Spool Adaptors: For transitioning from your custom block to different height requirements or flange sizes.
-
Companion Flanges: The essential mating pieces for the studded outlets on your new Tee or Cross.
-
Male Pins: For transitioning your solid block junctions into threaded flowlines or injection points.
Precision at Scale
When the job calls for solid block machining, there is no room for error. Turning raw forgings into complex, high-pressure junctions is a feat of engineering that requires the right equipment and the right expertise.
Need a custom-machined solution for your next project?
